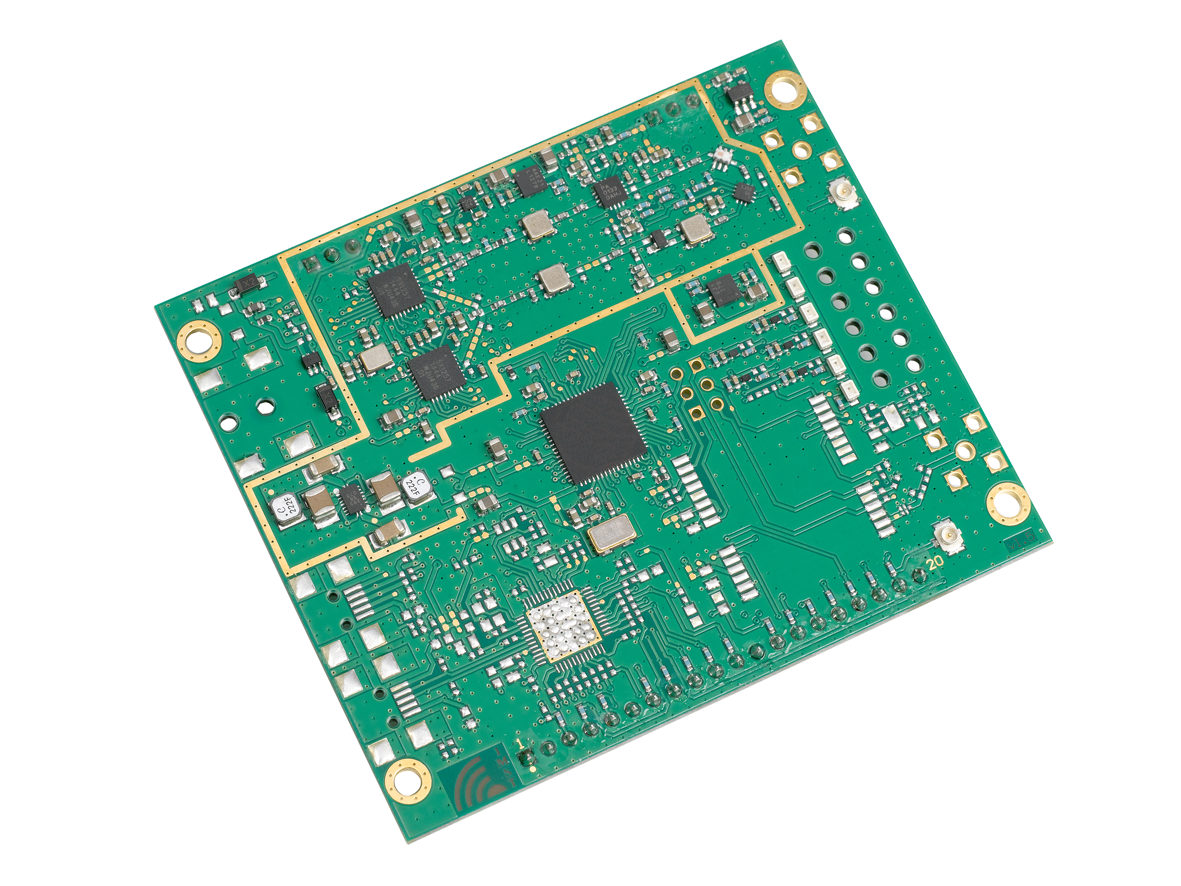

iC880A-SPI - LoRaWAN Concentrator 868 MHz
The iC880A-SPI is able to receive packets of different end devices send with different spreading factors on up to 8 channels in parallel. Due to the fact that the combination of spreading factors and signal bandwidths results in different data rates the use of “Dynamic Data-Rate Adaption” becomes possible. That means that LoRa® nodes with high distances from the concentrator must use higher spreading factors and therefore have a lower data rate. LoRa-nodes which are closer to the concentrator can use lower spreading factors and therefore can increase their data rate. This allows to build easy to handle star or multiple star networks without the need of routers or repeaters. Note: To connect a SMA Antenna (i.e. Art. 404811) it requires an u.fl-to-SMA cable (Art. 404812). LoRaWAN™ is a trademark of LoRa Alliance™, LoRa® is a registered trademark of Semtech. Microsoft Windows®, Microsoft CE® are registered trademarks of Microsoft.

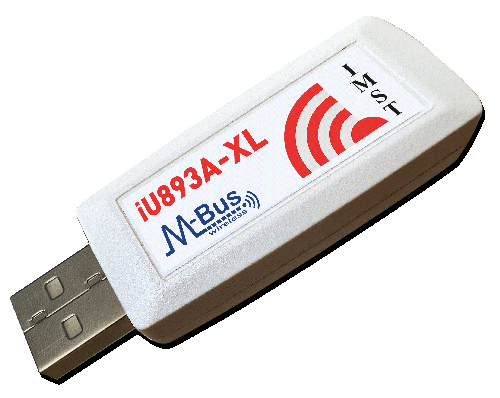

iU893A-XL - Wireless M-Bus USB-Adapter 868 MHz w. integrated antenna
The iU893A-XL Wireless M-Bus is a compact and cost–effective USB stick based on the Radio Module iM891A-XL that operates in the unlicensed 868 MHz band. The Wireless M-Bus USB Stick supports all major unidirectional and bidirectional wM-Bus modes, including S1, C1, T1, and combined C1/T1, with packet formats A and B. It is fully compliant with OMS security modes 5 and 7, ensuring reliable and secure data communication. The USB-stick comes with an integrated antenna. This compact USB device easily adds Wireless M-Bus connectivity to existing or new systems, enabling efficient data collection and monitoring of sensor data. It is the ideal solution for smart meter gateways and other IoT-based metering applications that require robust and secure wireless communication.

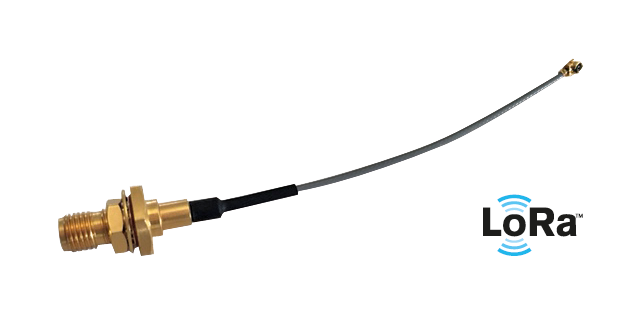

u.fl to SMA - Pigtail cable for iC880A-SPI, iM891A-XL
Pigtail (cable) for antenna port of iC880A-SPI and iM891A-XL. u.fl-to-SMA female cable, length: 100 mm

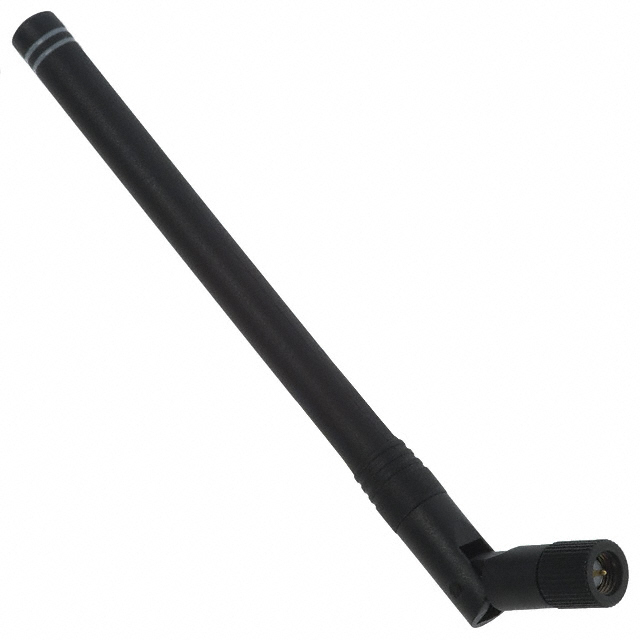

SMA Antenna for iM891A-XL, iU891A (recommended)
SMA Antenna for iM891A-XL and iU891A Specification: Frequency range: 824-896 MHz, Impedance: 50 Ω, Gain: -2.3 dBi, Omni-directional pattern.
SK-iM880B - Starter Kit for iM880B
The Starter Kit SK-iM880B is a plug & play solution to explore the features and capabilities of the LoRa radio module iM880B-L. The Starter Kit contains two demo boards and two radio modules, soldered on specific adapter boards. The modules are pre-programmed with the LoRa radio firmware (LR_Base). The LoRa technology can be easily evaluated with our Starter Kit SK-iM880B. It comprises a wide range of configuration and logging capabilities as well as several sample applications like Range Test, Data Link Service, etc. The SK-iM880B is also a supported platform within the LoRa Open Source Project LoRa-net on github.com.
PA-iM871A - Wireless M-Bus Analyzer
The 'Wireless M-Bus Packet Analyzer PA-iM871A' (Version 1.10) supports the monitoring and analyzing of Wireless M-Bus traffic according to EN 13757-4 and has an extended range of feature. This tool provides an easy to use graphical user interface for rapid troubleshooting and maintenance of your Wireless M-Bus network. Long time packet capturing and packet visualization for many Wireless M-Bus configurations can be managed with only a few mouse clicks in combination with the PA-iM871A, a Wireless M-Bus USB adapter. The Analyzer supports single- and dual-radio modes for monitoring of up- and downlink channels with different physical settings in parallel. Decryption support enables to inspect also AES-128 bit encrypted packets. Flexible packet filtering and data visualization allows an easy and efficient way for troubleshooting and validation of complex wireless network configurations. With respect to the ETSI regulations a traffic monitor for duty cycle evaluation completes the list of supported features. Packet Capturing: connect the PA-iM871A to your PC and start your monitor session Single Radio Mode: used for S1, S1m, S2, T1 Dual Radio Mode: suitable for T2 and R2 Packet Visualization: packet content is visualized in multiple ways Packet Filter: focus on specific message types or network nodes for fast and easy analyzing Message Parser: deep packet analysis including M-Bus application layer (EN 13757-3) Traffic Monitor: evaluate the Duty Cycle of single Wireless M-Bus nodes AES Decryption: decryption support for multiple AES-128 bit Keys Operating Systems: MS-Windows™ 7, 8, 10 Detailed Information

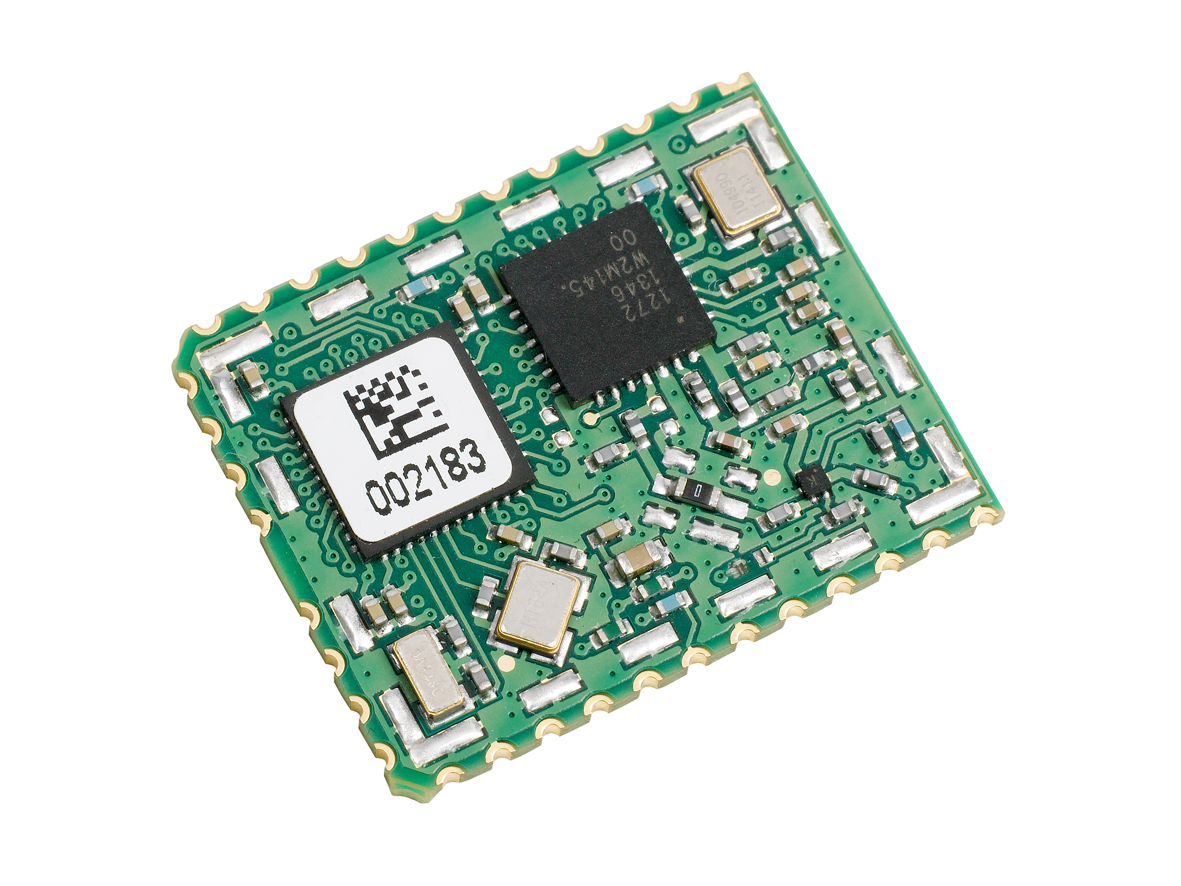

iM880B-L LR_Base - Long Range Radio Module
The 'iM880B-L LR_Base' is a compact and low-cost radio module that operates in the unlicensed 868 MHz band and combines a powerful Cortex-M3 controller with the LoRa® transceiver SX1272 of Semtech Corporation. A sensitivity of up to -137 dBm and a maximum output power of +19 dBm result in a link budget of more than 156 dB. Even when reducing the output power to +14 dBm ranges beyond 12 km are feasible in free space (Line of Sight). The 'iM880B-L LR_Base' is pre-certified according to the European RED guideline and can be soldered like an SMD component. The 'iM880B-L LR_Base' includes an embedded protocol stack which allows the setting of six orthogonal spreading sequences, four error correction schemes and three signal bandwidths and thus offers the user a high degree of flexibility. Furthermore it provides various options for configuration and communication via the serial interface. In addition, it is possible to integrate customer specific applications on request. The Radio Module is pre-programmed with LR_Base, a propritary protocol. More information ... LoRaWAN™ is a trademark of LoRa Alliance™, LoRa® is a registered trademark of Semtech, Inc. Microsoft Windows®, Microsoft CE® are registered trademarks of Microsoft, Inc.
WSA01-iM880B - WiMOD Shield for Arduino
WiMOD Shield for Arduino™ - A Long Range Radio Extension Board for Ardunio™ The WiMOD Shield is a expansion board that enables users of Arduino™ / Arduino-compatible boards to use WiMOD radio modules based on LoRa™ technology. Arduino™ boards are microcontoller-based boards that allow the user to do simple designs and prototypes or experiment with microcontroller circuits in general. The boards offer an interface for extending the basic functionality like sensors and actors by just stacking the extension boards to the base board. The WiMOD Shield is a small and low cost extension board that can be attached to the top offering an radio interface based on the LoRa™ technology. The shield is an interface card for connecting a WiMOD radio module to an Arduino™ board. The Shield includes everything that is needed for connecting a WiMOD module to an Arduino™ board. The power supply is sourced by the Arduino™ board and the I/O logic levels are adjusted by integrated level shifters. The SMA connector offers the possibility to add virtually any suitable antenna to get a good performance. The Shield offers two possible UART connections, so it can be used with Arduino™ UNO-like board and with Arduino™ DUE-like boards. For the latter one an additional UART can be used exclusively for the radio module communication. Besides the hardware board a example software library providing an easy access to the WiMOD HCI interface is available. The library is compatible to the Arduino™ IDE an can be installed by a simple import of the given files. This makes a complete example showing all steps of processing WiMOD's HCI messages on the low level side. On the high level side the library offers a bunch of simple API commands that control the WIMOD modem firmware. Hence a prototype of a LoRaWAN™ end-node can be created in minutes. This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION OR EVALUATION PURPOSES ONLY and is not considered by IMST GmbH to be finished end - product fit for general consumer use.

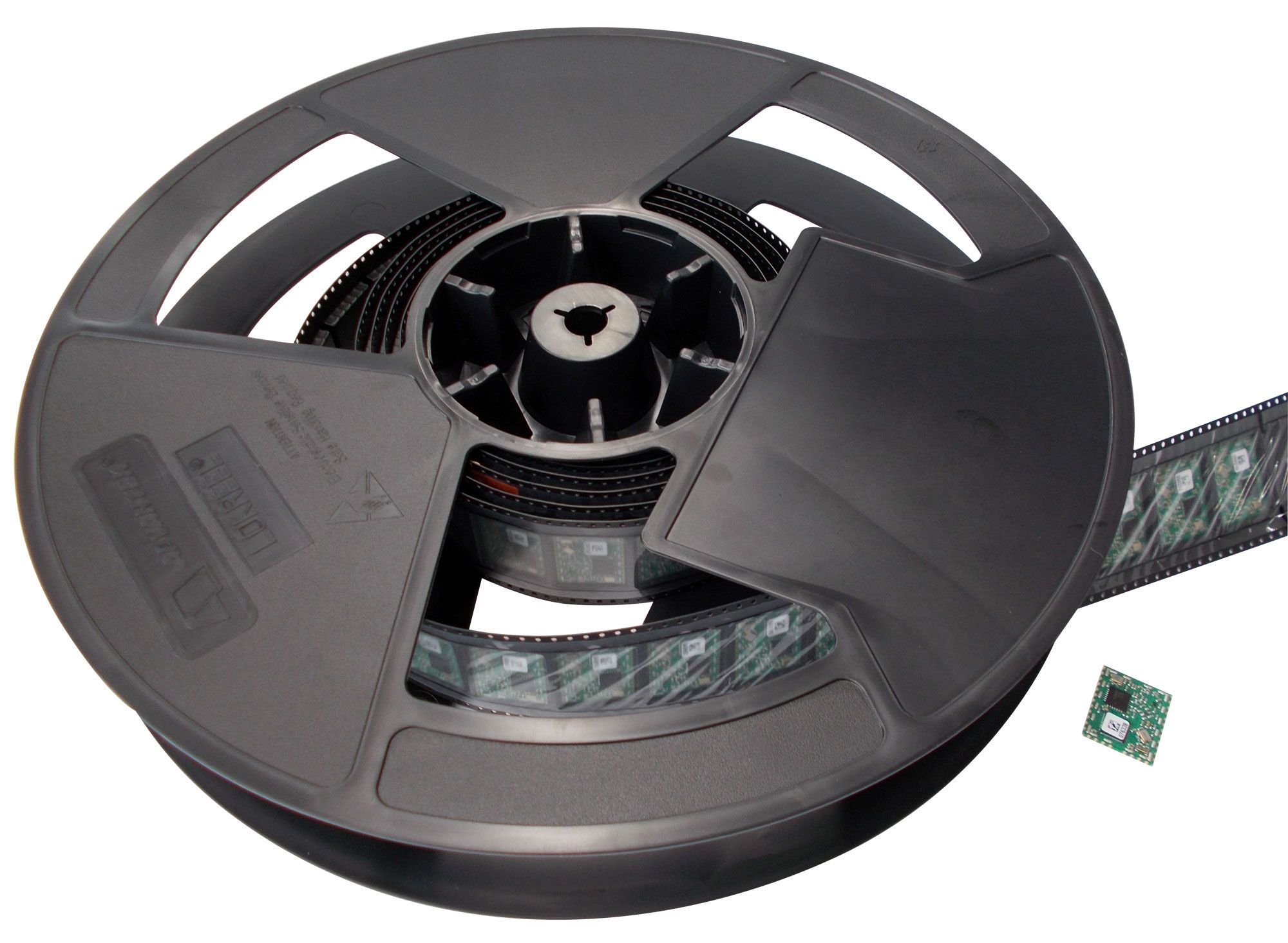

100 x iM880B-L LR_Base - Tape & Reel - Long Range Radio Module
Please ask always for a quote at sales@imst.de for volumes not offered in the webshop! This article contains 100 units of the 'iM880B-L LR_Base' Radio Module on Tape & Reel for automated pick and place tools. The 'iM880B-L LR_Base' is a compact and low-cost radio module that operates in the unlicensed 868 MHz band and combines a powerful Cortex-M3 controller with the LoRa® transceiver SX1272 of Semtech Corporation. A sensitivity of up to -137 dBm and a maximum output power of +19 dBm result in a link budget of more than 156 dB. Even when reducing the output power to +14 dBm ranges beyond 12 km are possible in free space. The 'iM880B-L LR_Base' is pre-certified according the European RED guideline and can be soldered like an SMD component. The 'iM880B-L LR_Base' includes an embedded protocol stack which allows the setting of six orthogonal spreading sequences, four error correction schemes and three signal bandwidths and thus offers the user a high degree of flexibility. Furthermore it provides various options for configuration and communication via the serial interface. In addition, it is possible to integrate customer specific applications on request. The Radio Module is pre-programmed with LR_Base, a propritary protocol. More information ... LoRaWAN™ is a trademark of LoRa Alliance™, LoRa® is a registered trademark of Semtech, Inc. Microsoft Windows®, Microsoft CE® are registered trademarks of Microsoft, Inc.

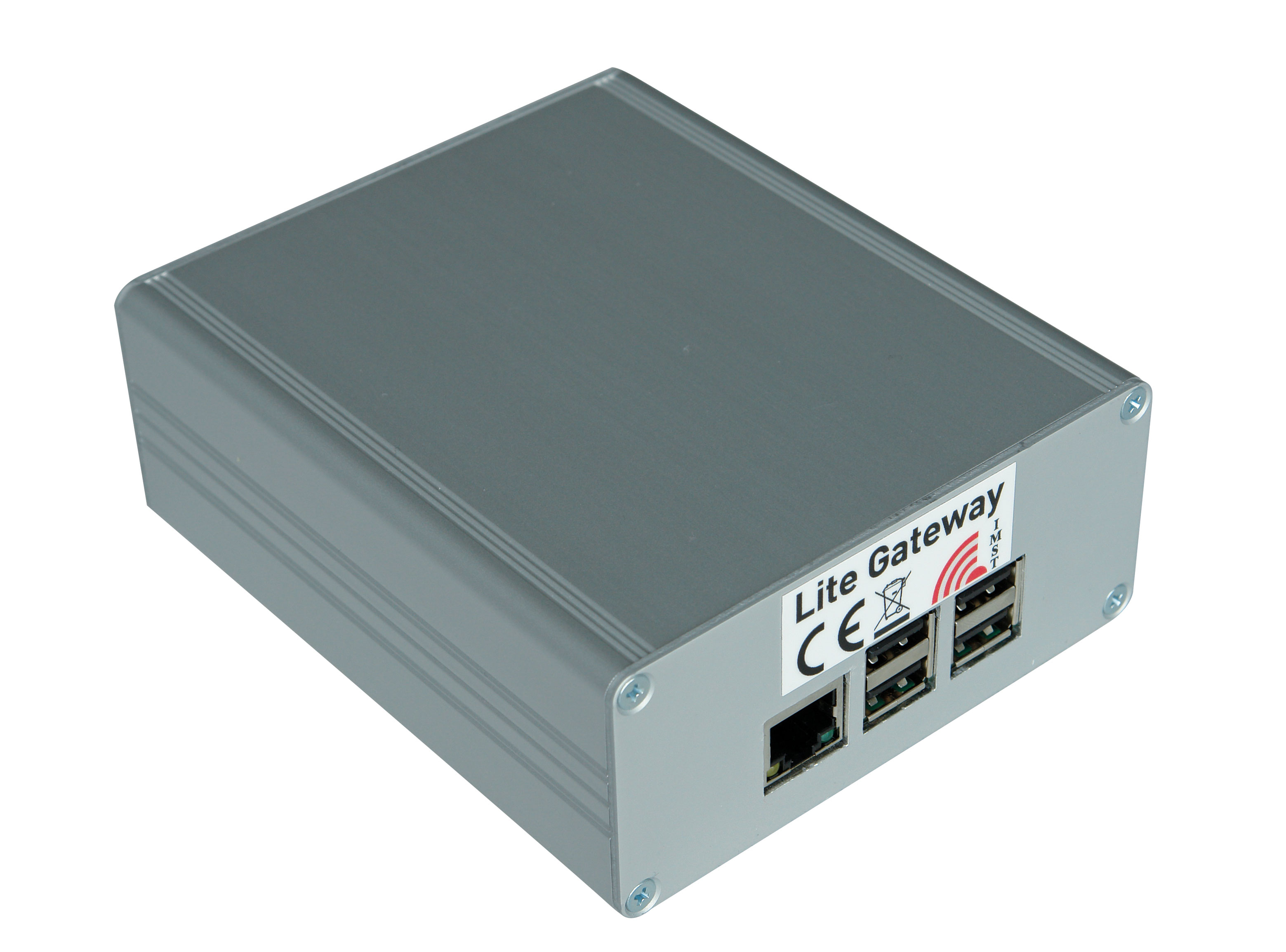

Lite Gateway - Demonstration Platform for LoRa® Technology
The Lite Gateway (LGW) is a demonstration and evaluation platform consisting of the pre-certified concentrator iC880A-SPI, a Raspberry Pi, a pre-configured SD-card and a housing. The product requires an SMA-Antenna (868 MHz) and a Power Supply Unit (5 V, 2.5 A), see accessories. The Power Supply requires a 5.5mm/2mm barrel to connect the Lite Gateway Unit. This device enables LoRa-customers to demonstrate and evaluate LoRaWAN™ features, and can be easily connect to existing servers (e.g. iot.semtech.com , Loriot). The source code of firmware is provided by the open source github project lora-net) This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION OR EVALUATION PURPOSES ONLY and is not considered by IMST GmbH to be finished end - product fit for general consumer use. More Information LoRaWAN™ is a trademark of the LoRa Alliance®, LoRa®, LoRa Alliance® are registered trademarks of Semtech.

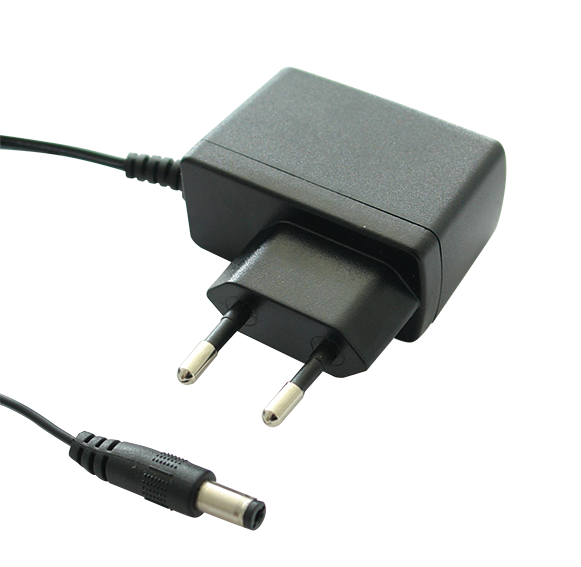

Power Supply Unit for Lite Gateway
Power Supply Unit for Lite Gateway (Input AC 220/235V, Output DC 5V/2.4A, 12W). The Power Supply comes with a 5.5mm/2mm barrel to connect the Lite Gateway Unit.
iM282A-L LR_Base Plus - Long Range Radio Module
The 'iM282A-L LR_Base Plus' is a compact and low-cost radio module that operates in the unlicensed 2.45 GHz band and combines a powerful Cortex-M3 controller with the new ultra long range transceiver SX1280 of Semtech Corporation. It has been specifically designed for battery driven applications and is able to achieve without any additional amplifiers a LoS range of more than 10 km. The WiMOD LR Base Plus firmware provides LoRa®-modem functionalities which allows to implement proprietary and cost sensitive radio networks with typical topologies like peer-to-peer and star configurations. The embedded radio protocol stack offers unacknowledged and acknowledged radio packet exchange with optional encryption and automatic power saving for battery driven applications. Besides the modem services the firmware includes some example features which are typical for the application area of this LoRa® radio modules: a tiny sensor application which demonstrates a periodic sensor data transmission and a remote control with digital input/ouput via radio link. Finally the supporting software provides two analizing tools, which are helpful in developing radio based applications: Radio Link Test application which allows to analyze the radio link quality for different LoRa® radio settings by means of the typical metrics Packet RSSI, Packet SNR and Packet Error Rate Radio Packet Sniffer which forwards received radio packets These embedded development tools and all the other features can be used in combination with WiMOD LR Studio which offers an easy to use configuration, logging capabilities and data visualisation. LoRa® is a registered trademark of Semtech, Inc.
SK-iM282A - Starter Kit for iM282A-L
The Starter Kit is a plug & play solution to explore the features and capabilities of the Long Range Radio (LoRa®) module 'iM282A-L LR_Base Plus'. The kit contains two demo boards and two radio modules soldered on specific adapter boards. The modules are pre-programmed with the LR_Base Plus firmware, software for the protocol option 'GlobalLink24' is available for download. The demo board is the basic platform of the Starter Kit and provides several functional units. These units include power supply, USB interface, and several input and output elements, such as push buttons, DIP switches, potentiometer, and LEDs. In addition all pads of the attached radio module can be accessed via pin connectors. Connection between the radio module and the demo board is established via a module-specific adapter board. The radio module is soldered on the adapter board which is attached to the demo board through pin connectors. The adapter board also has a SMA jack connected to the RF output of the radio module, which can be used to connect an external antenna (or RF measuring and test equipment). The LoRa® technology can be easily evaluated with our Starter Kit SK-iM282A. It comprises a wide range of configuration and logging capabilities as well as several sample applications like Range Test, Data Link Service, etc. Content WiMOD LR Studio 2x demo board 2x module specific adapter board 2x radio module soldered on the adapter board 2x external antenna 2x USB cable Application & Software Studio GUI for Windows Module Configuration Radio Link Test Data Link Services Packet Sniffer Real Time Clock Sensor App Comprehensive Logging Capabilities LoRa® is a registered trademark of Semtech, Inc.
SMA Antenna for 2450 MHz Products
Description: SMA Antenna for 2450 MHz products. Accessory to WiMODino-iM282A. Specification: Frequency range: 2450 MHz (ISM Band), Impedance: 50 Ω

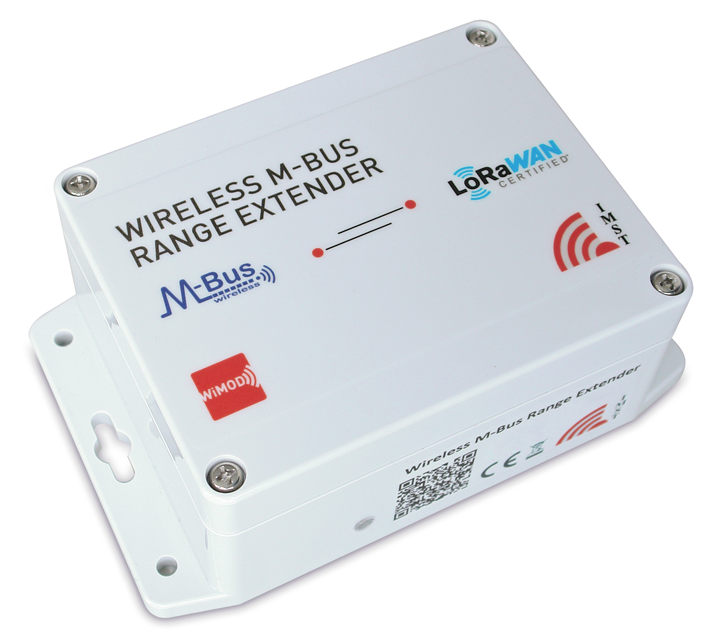

Wireless Range Extender
The 'Wireless Range Extender' is a compact and cost-effective device that collects Wireless M-Bus messages from utility meters and forwards them to a LoRaWAN® network. This product extends significantly the range of systems and allows filtering those messages by manufacturer ID (M-field) and sender address (A-field) to select specific groups of measuring instruments. The range extender allows a flexible configuration of calendar events for Wireless M-Bus reception intervals and status messages as well as device filtering by manufacturer ID and device ID (whitelist). The configuration can be managed Over-The-Air via LoRa® messages or via a wired serial interface. Beside the Wireless M-Bus functionality the firmware supports a LoRaWAN® compliant protocol stack as well as a proprietary LoRa® stack for wireless Point-to-Point and Point-to-Multipoint communication. A configuration cable is required to initialize and change the settings. The article 'Configuration Cable for Wireless M-Bus Range Extender' can be chosen as an accessory in this webshop, too. Note 1: The product is only available to professional and business users, the supplier IMST reserves the right to reject any non-business purchases. Note 2: The product contains a Lithium-Ion Battery. Due to transport security regulations, the product is currently available in the folloeing countries only: Germany, Austria, Belgium, Denmark, France, Hungary, Italy, Luxembourg, Netherlands, Norway, Sweden, Schwitzerland, Slowenia, Slowakia, Poland, Rumänia, Ireland, Spain, Portugal. We may decide to reject your purchase order in other cases. If you still desire to have this product in other regions, you may ask for an individual quote at sales@imst.de with dedicated shipment conditions. In future the product may be available also without a battery or with a separate power supply. Shipments will be done via DHL Package International only. LoRa® is a registered trademark of Semtech. LoRaWAN® is a registered trademark of the LoRa Alliance.
SK-iM881A-XL - Starter Kit for iM881A-XL
The Starter Kit 'SK-iM881A-XL' is a plug & play solution to explore the features and capabilities of the LoRa radio module iM881A-XL. The Starter Kit contains two demo boards and two radio modules, soldered on specific adapter boards. The modules are pre-programmed with the LoRa radio firmware (LR_Base). The LoRa technology can be easily evaluated with our Starter Kit 'SK-iM881A-XL'. It comprises a wide range of configuration and logging capabilities as well as several sample applications like Range Test, Data Link Service, etc. The 'SK-iM881A-XL' is also a supported platform within the LoRa Open Source Project LoRa-net on github.com.

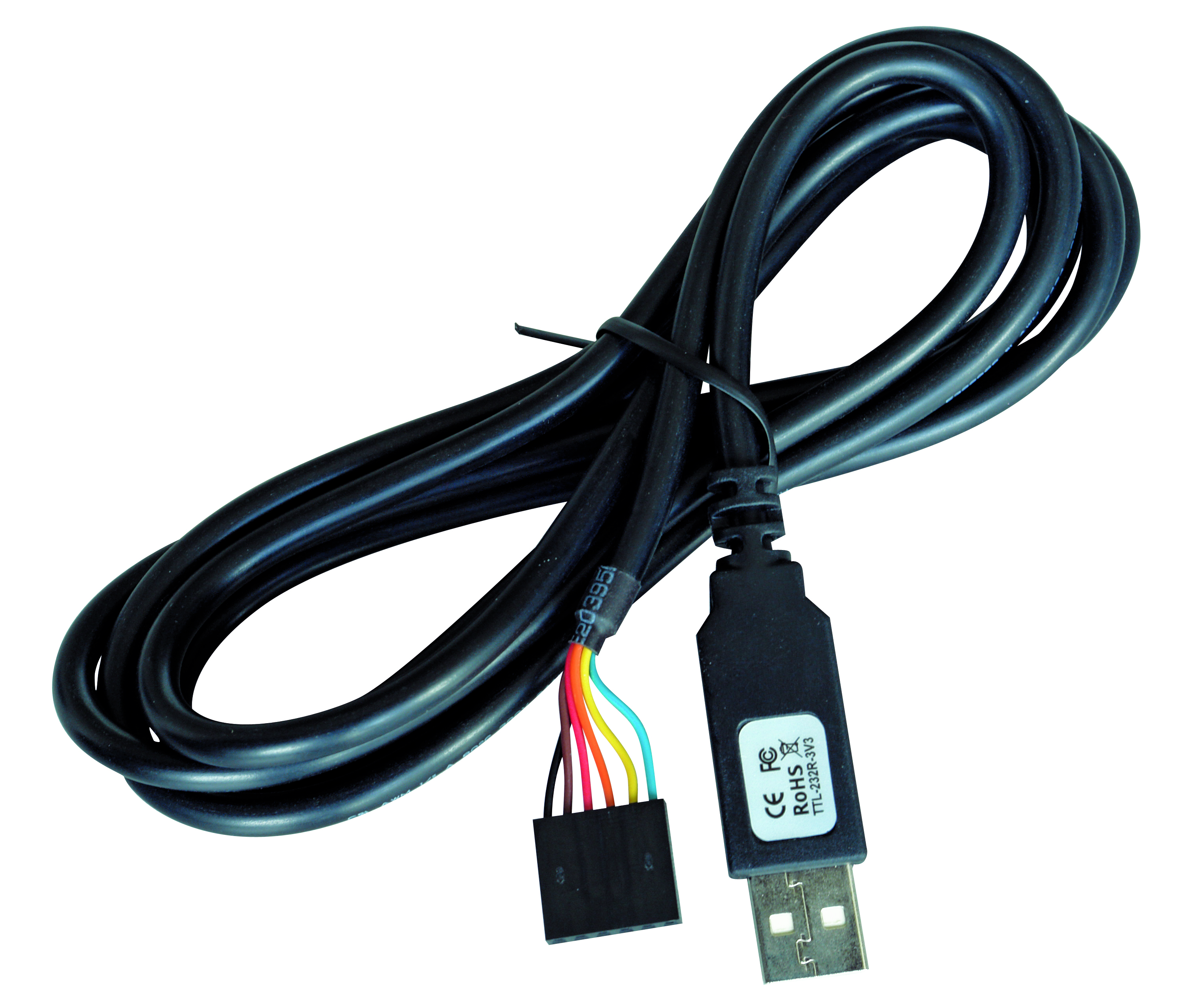

Configuration Cable for Wireless M-Bus Range Extender
Configuration Cable for 'Wireless M-Bus Range Extender', accessory product for configuring the 'Wireless M-Bus Range Extender'. USB to UART cable with +3.3V TTL level UART signals (Type FTDI: TTL-232R-3V3), length 1.8 m.

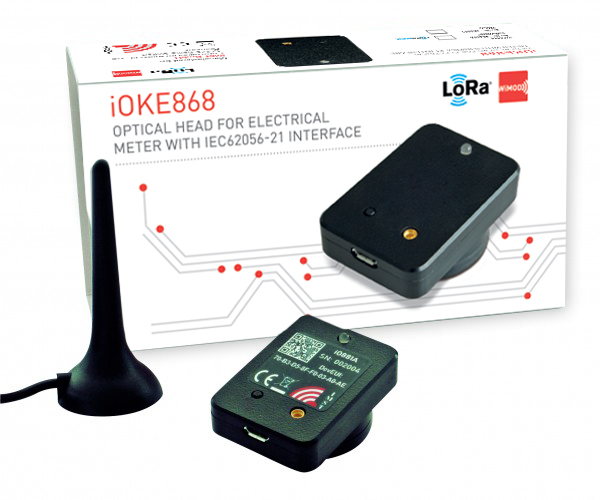

iOKE868 LoRaWAN® Smart Metering Kit
The ‘iOKE868 LoRaWAN® Smart Metering Kit’ leverages the long range and low power consumption of LoRa® to provide real-time data monitoring of energy consumption and secure connectivity to the LoRaWAN® IoT network. It is compatible with most modern smart meters (compliant with IEC62056-21 and SML messages). The ‘iOKE868 LoRaWAN® Smart Metering Kit’ can be attached magnetically to the smart meter to read out the infrared interface, extract the desired values and transfer those to the LoRaWAN® network with a period defined by the user. The external antenna provides a maximum flexibility during installation in difficult RF environments. A user-friendly configuration tool offers an easy way to change the radio, calendar and filter settings. These advantages result in a far more comprehensive and detailed feedback on energy consumption and enables a significant reduction of operational costs. The product includes the following parts: iO881A optical reading head USB-cable for power supply (1.8 m) antenna (magnetic base) with 2.0 m cable. The ‘iOKE868 LoRaWAN® Smart Metering Kit’ comes without any power supply, please choose between battery-holder and power-supply unit (USB), see accessories, if needed. Note 1: The configuration can be managed Over-The-Air via LoRa® messages or via wired serial interface (Windows PC tool).Note 2: In certain countries, i.e. Austria, the optical interface might be subject to an encryption according to "Smart Metering Requirements VO 2011". This feature is currently not supported by this product.

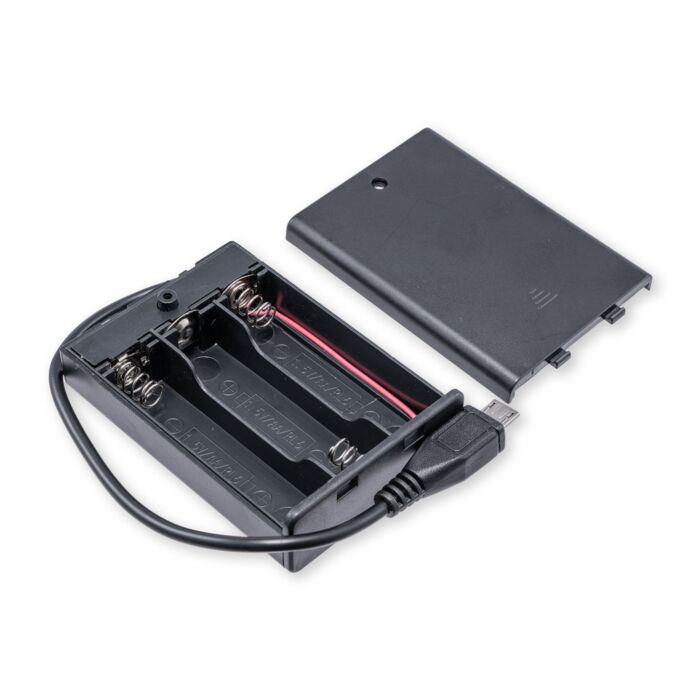

Battery Holder for iO881A and iOKE868
This accessory can be ordered in addition to the product ‘iOKE868 LoRaWAN® Smart Metering Kit’ to get it independent from electrical power grids (batteries are not included). Battery Holder (3x AA), Switch and USB-Connector.
iM881A-XL LR_Base - Long Range Radio Module
The LoRa® technology of Semtech, Inc. provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. The 'iM881A-XL LR_Base' is especially suitable for battery driven devices. It consumes only 38 mA in transmit mode with +14 dBm and 25 mA @ +10 dBm. Here the radio modules comes with the proprietary protocol version LR_Base. Frequency: 868 MHz Range (LoS): up to 15,000 m RF power: up to +14 dBm Sensitivity: down to -137 dBm LoRa® is a registered trademark of Semtech Corporation.

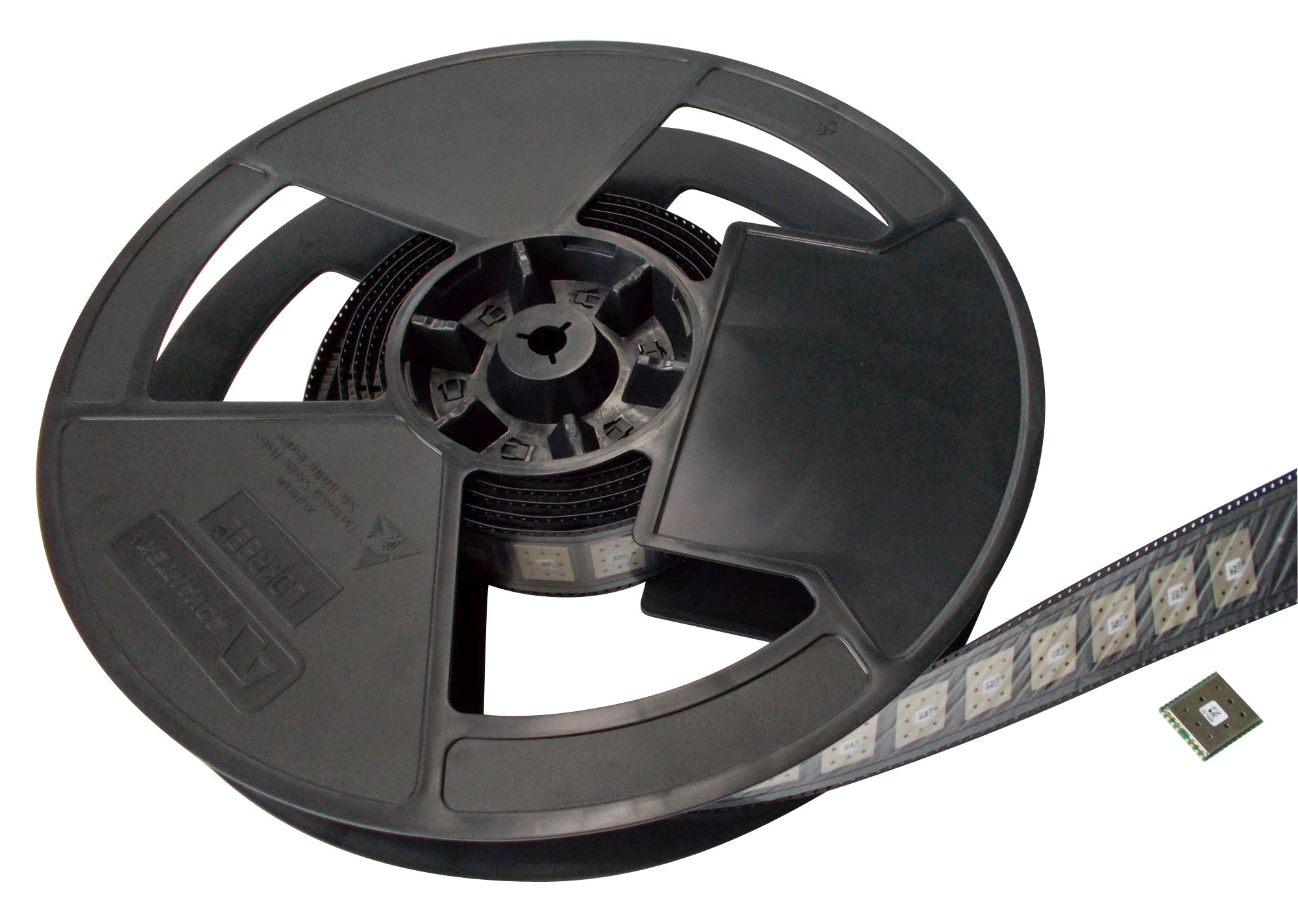

100 x iM881A-XL LR_Base - Tape & Reel - Long Range Radio Module
Please ask always for a quote at sales@imst.de for volumes not offered in the webshop! This article contains 100 units of the 'iM881A-XL LR_Base' radio module on Tape & Reel for automated pick and place tools. The LoRa® technology of Semtech, Inc. provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. The 'iM881A-XL LR_Base' is especially suitable for battery driven devices. Frequency: 868 MHz Range (LoS): up to 15,000 m RF power: up to +14 dBm Sensitivity: down to -137 dBm LoRaWAN™: iM881A-XL pre-programmed with the LoRaWAN™-protocol (LoRa Alliance™ certified)(non-personalized: DevEUI set, all other parameter (DevAddr, NwkSKey, AppSKey, AppKey set to zero)) LoRaWAN™ is a trademark of the LoRa Alliance™, LoRa® is a registered trademark of Semtech Corporation.

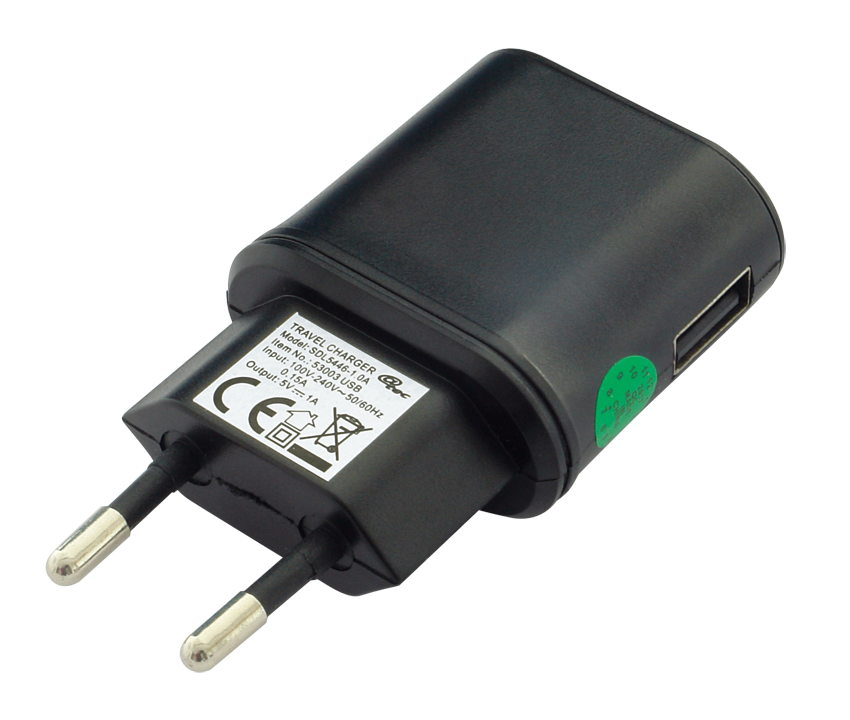

Power Supply Unit for iO881A and iOKE868
This accessory can be ordered in addition to the product ‘iOKE868 LoRaWAN® Smart Metering Kit’ to connect it to electrical power grids.
iM282A-L GlobalLink24 LoRa Radio Module
The 'iM282A-L GlobalLink24 LoRa Radio Module' is a compact and low-cost radio module that operates in the unlicensed 2.45 GHz band and combines a powerful Cortex-M3 controller with the ultra long range transceiver SX1280 of Semtech Corporation. It has been specifically designed for battery driven applications and is able to achieve without any additional amplifiers a LoS range of more than 10 km. This module is pre-certified according the European RED guideline and can be soldered like an SMD component. The iM282A-L is pre-programmed with GlobalLink24 protocol stack, a new firmware emulating LoRaWAN® at 2.45 GHz. It provides various options for configuration and communication via the serial interface.

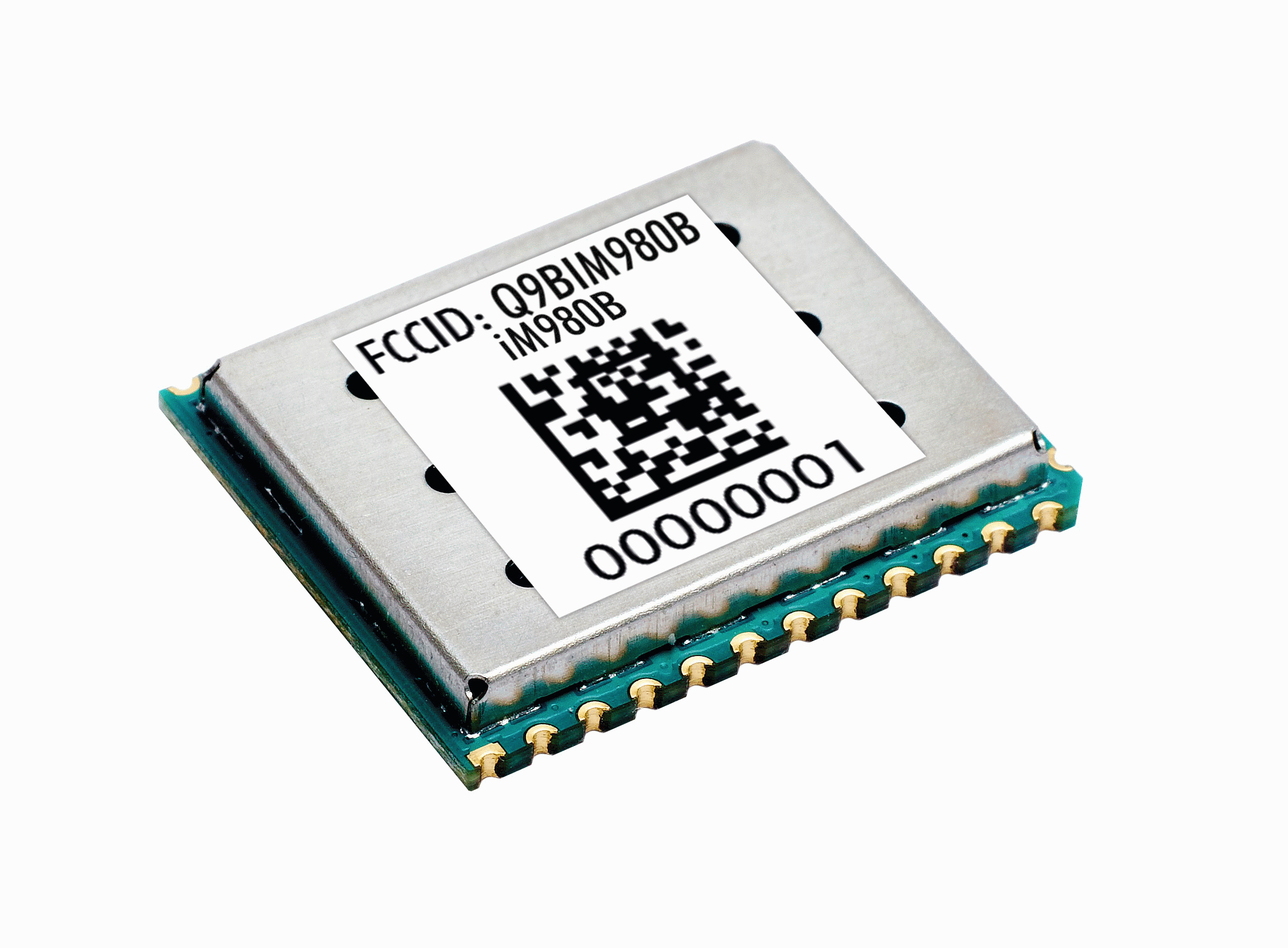

iM980B-L Prolink LoRaWAN MBAND - Long Range Radio Module
The 'iM980B-L Prolink LoRaWAN MBAND' is a compact and low-cost radio module that operates in the unlicensed 915 MHz band and combines a powerful Cortex-M3 controller with the LoRa® transceiver of Semtech Corporation. A sensitivity of down to -138 dBm and a maximum output power of +18.5 dBm results in a link budget of more than 155 dB. The 'iM980B-L' has received Federal Communications Commission (FCC) CFR47 Telecommunications, Part 15 Subpart C modular approval in accordance with Part 15.212 Modular Transmitter Statement about FCC. Its firmware supports the US915 and AU915 frequency bands and it is LoRaWAN® certified. It enables Low Power Wide Area Networks (LPWANs) for Internet-of-Things (IoT) and Machine-to Machine (M2M) applications and supports Direct or Over The Air Activation (OTAA). LoRaWAN™ is a trademark of LoRa Alliance™, LoRa® is a registered trademark of Semtech, Corp.
