EMPIRE XPU is a leading 3D EM field solver for RF and microwave antennas, components, and systems. Due to its unique on-the-fly compilation it has been proven to be the fastest simulation engine which allows the modeling of highly complex structures within minutes. The offer here allows to extensively test the software for your appropriateness for a rental period of three (3) months. Thus, at a very low price you are able to immediately start your project, while getting convinced by the tool This Starter Kit contains the EMPIRE XPU Gold package features and is limited to new customers (first-time users). Items shipped: EMPIRE XPU software (dowload), node locked license Rental Period: 3 months More information ...

The hardlock key (USB dongle) enables the use of a single user (node-locked) license on Windows PCs (other options are available too). Included in the price is the conversion of an existing node-locked license towards a dongled license file. This product is an accessory to the software tool for those who want a physical bound license arrangement instead of node-locked or floating licenses. Type: USB dongle (Aladdin, Flexnet ID 9) More information ...

The iC880A-SPI is able to receive packets of different end devices send with different spreading factors on up to 8 channels in parallel. Due to the fact that the combination of spreading factors and signal bandwidths results in different data rates the use of “Dynamic Data-Rate Adaption” becomes possible. That means that LoRa® nodes with high distances from the concentrator must use higher spreading factors and therefore have a lower data rate. LoRa-nodes which are closer to the concentrator can use lower spreading factors and therefore can increase their data rate. This allows to build easy to handle star or multiple star networks without the need of routers or repeaters. Note: To connect a SMA Antenna (i.e. Art. 404811) it requires an u.fl-to-SMA cable (Art. 404812). LoRaWAN™ is a trademark of LoRa Alliance™, LoRa® is a registered trademark of Semtech. Microsoft Windows®, Microsoft CE® are registered trademarks of Microsoft.

The Starter Kit SK-iM880B is a plug & play solution to explore the features and capabilities of the LoRa radio module iM880B-L. The Starter Kit contains two demo boards and two radio modules, soldered on specific adapter boards. The modules are pre-programmed with the LoRa radio firmware (LR_Base). The LoRa technology can be easily evaluated with our Starter Kit SK-iM880B. It comprises a wide range of configuration and logging capabilities as well as several sample applications like Range Test, Data Link Service, etc. The SK-iM880B is also a supported platform within the LoRa Open Source Project LoRa-net on github.com.

The 'Wireless M-Bus Packet Analyzer PA-iM871A' (Version 1.10) supports the monitoring and analyzing of Wireless M-Bus traffic according to EN 13757-4 and has an extended range of feature. This tool provides an easy to use graphical user interface for rapid troubleshooting and maintenance of your Wireless M-Bus network. Long time packet capturing and packet visualization for many Wireless M-Bus configurations can be managed with only a few mouse clicks in combination with the PA-iM871A, a Wireless M-Bus USB adapter. The Analyzer supports single- and dual-radio modes for monitoring of up- and downlink channels with different physical settings in parallel. Decryption support enables to inspect also AES-128 bit encrypted packets. Flexible packet filtering and data visualization allows an easy and efficient way for troubleshooting and validation of complex wireless network configurations. With respect to the ETSI regulations a traffic monitor for duty cycle evaluation completes the list of supported features. Packet Capturing: connect the PA-iM871A to your PC and start your monitor session Single Radio Mode: used for S1, S1m, S2, T1 Dual Radio Mode: suitable for T2 and R2 Packet Visualization: packet content is visualized in multiple ways Packet Filter: focus on specific message types or network nodes for fast and easy analyzing Message Parser: deep packet analysis including M-Bus application layer (EN 13757-3) Traffic Monitor: evaluate the Duty Cycle of single Wireless M-Bus nodes AES Decryption: decryption support for multiple AES-128 bit Keys Operating Systems: MS-Windows™ 7, 8, 10 Detailed Information

Pigtail (cable) for antenna port of iC880A-SPI and iM891A-XL. u.fl-to-SMA female cable, length: 100 mm

The 'iM880B-L LR_Base' is a compact and low-cost radio module that operates in the unlicensed 868 MHz band and combines a powerful Cortex-M3 controller with the LoRa® transceiver SX1272 of Semtech Corporation. A sensitivity of up to -137 dBm and a maximum output power of +19 dBm result in a link budget of more than 156 dB. Even when reducing the output power to +14 dBm ranges beyond 12 km are feasible in free space (Line of Sight). The  'iM880B-L LR_Base' is pre-certified according to the European RED guideline and can be soldered like an SMD component. The 'iM880B-L LR_Base' includes an embedded protocol stack which allows the setting of six orthogonal spreading sequences, four error correction schemes and three signal bandwidths and thus offers the user a high degree of flexibility. Furthermore it provides various options for configuration and communication via the serial interface. In addition, it is possible to integrate customer specific applications on request. The Radio Module is pre-programmed with LR_Base, a propritary protocol. More information ... LoRaWAN™ is a trademark of LoRa Alliance™, LoRa® is a registered trademark of Semtech, Inc. Microsoft Windows®, Microsoft CE® are registered trademarks of Microsoft, Inc.

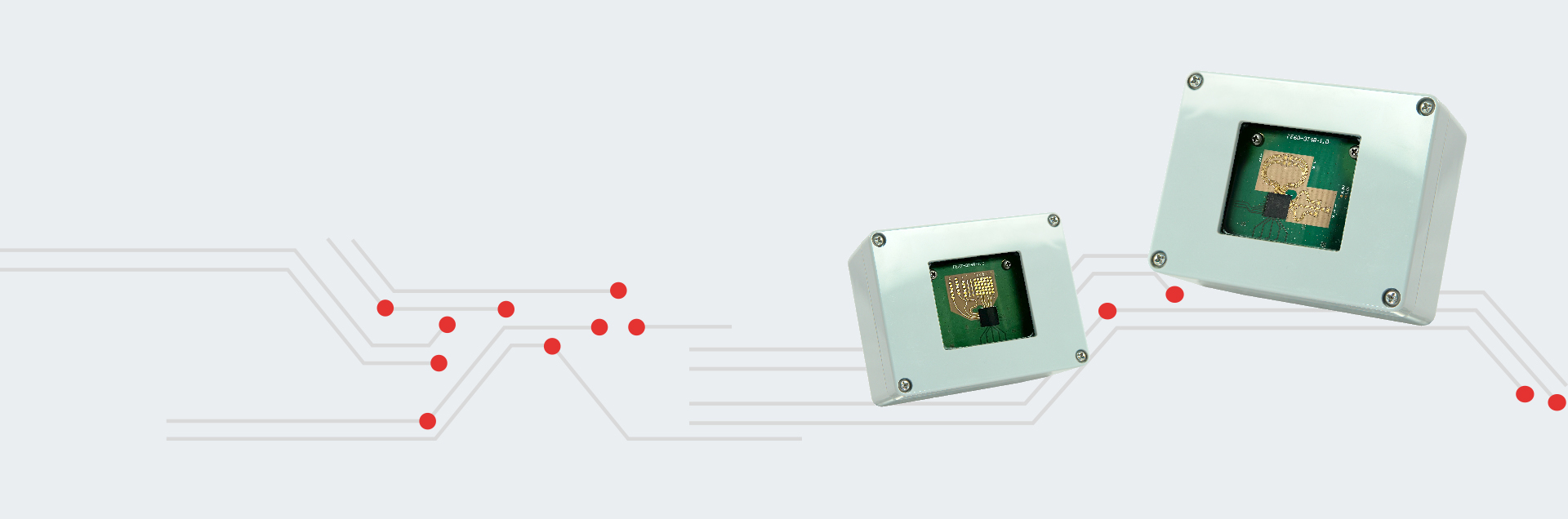

The Sentire™ Radar Module - 'sR-1200e' - is a plug & play radar solution. It features a single chip-IC from Infineon for the radar functionality. The 24 GHz Radar Module sR-1200e has one transmit and two receive antennas/channels. Thus, it is well suited for distance, angle and speed measurements in FMCW or Doppler mode. Furthermore, this product features Power-over-Ethernet (PoE) functionality for powering the devices and data transmission. The Radar Module sR-1200e may be used on UAVs (civil drones) also. It can be equipped on robots for collision avoidance, industrial vehicles for safety measures, general collision avoidance measures and/or distance metering, too. Furthermore, this radar is well suited for area surveillance including detection and tracking of persons (intruders). More Detailed Information on Radar Solutions at IMST. By ordering one of IMST's Radar Module or Developer Kit, which includes the software tool "SenTool", the customer agrees to accept the attached "License Conditions for Software Products from IMST GmbH" and the "Terms and conditions for accessing or otherwise using Python". All necessary software and hardware requirements have to be fulfilled by the customer and are not part of the services hereunder. IMST GmbH applies "Python" for the "SenTool" Software for WindowsTM computers, which is part of this quotation. In particular Python version 2.7.13 is utilized. Python is developed under an OSI-approved open source license, making it freely usable and distributable, even for commercial use. Python's license is administered by the Python Software Foundation (https://www.python.org/psf/). License conditions for Python can be found here: https://docs.python.org/2.7/license.html. IMST GmbH applies "Apache" and “Androidplot” for the "SenTool" Software for AndroidTM mobile devices, which is part of this quotation. Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at http://www.apache.org/licenses/LICENSE-2.0. Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License. Notice for Non-EU customers: The radar modules “DK-sR-1200e” and “sR-1200e” come with CE certification but not with FCC/ISED. Customer has to take full liability for the operation on its own. Please adhere to your national frequency regulations for the 24 GHz ISM band (Industrial, Scientific and Medical radio spectrum).

The Sentire™ Radar Developer Kit – 'DK-sR-1200e' - is a plug & play radar solution as a demonstration and development platform. It features a single chip-IC from Infineon for the radar functionality. The 24 GHz radar module - sR-1200e - has one transmit and two receive antennas/channels. Thus, it is well suited for distance, angle and speed measurements in FMCW or Doppler mode. The Radar Developer Kit comes with one single radar module of type sR-1200e. You may get a second module additionally by choice. The Developer Kit 'DK-sR-1200e' comes along with a configuration and visualization tool - SenTool™ for Windows™ PCs. The GUI includes basic radar configuration settings, data plotting as well as target recognition and tracking capabilities. Furthermore, this product features Power-over-Ethernet (PoE) functionality for powering the devices and for data transmission. More Detailed Information on Radar Solutions at IMST. By ordering one of IMST's Radar Module or Developer Kit, which includes the software tool "SenTool", the customer agrees to accept the attached "License Conditions for Software Products from IMST GmbH" and the "Terms and conditions for accessing or otherwise using Python". All necessary software and hardware requirements have to be fulfilled by the customer and are not part of the services hereunder. IMST GmbH applies "Python" for the "SenTool" Software for WindowsTM computers, which is part of this quotation. In particular Python version 2.7.13 is utilized. Python is developed under an OSI-approved open source license, making it freely usable and distributable, even for commercial use. Python's license is administered by the Python Software Foundation (https://www.python.org/psf/). License conditions for Python can be found here: https://docs.python.org/2.7/license.html. IMST GmbH applies "Apache" and “Androidplot” for the "SenTool" Software for AndroidTM mobile devices, which is part of this quotation. Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at http://www.apache.org/licenses/LICENSE-2.0. Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License. Notice for Non-EU customers: The radar modules “DK-sR-1200e” and “sR-1200e” come with CE certification but not with FCC/ISED. Customer has to take full liability for the operation on its own. Please adhere to your national frequency regulations for the 24 GHz ISM band (Industrial, Scientific and Medical radio spectrum).

WiMOD Shield for Arduino™ - A Long Range Radio Extension Board for Ardunio™ The WiMOD Shield is a expansion board that enables users of Arduino™ / Arduino-compatible boards to use WiMOD radio modules based on LoRa™ technology. Arduino™ boards are microcontoller-based boards that allow the user to do simple designs and prototypes or experiment with microcontroller circuits in general. The boards offer an interface for extending the basic functionality like sensors and actors by just stacking the extension boards to the base board. The WiMOD Shield is a small and low cost extension board that can be attached to the top offering an radio interface based on the LoRa™ technology. The shield is an interface card for connecting a WiMOD radio module to an Arduino™ board. The Shield includes everything that is needed for connecting a WiMOD module to an Arduino™ board. The power supply is sourced by the Arduino™ board and the I/O logic levels are adjusted by integrated level shifters. The SMA connector offers the possibility to add virtually any suitable antenna to get a good performance. The Shield offers two possible UART connections, so it can be used with Arduino™ UNO-like board and with Arduino™ DUE-like boards. For the latter one an additional UART can be used exclusively for the radio module communication. Besides the hardware board a example software library providing an easy access to the WiMOD HCI interface is available. The library is compatible to the Arduino™ IDE an can be installed by a simple import of the given files. This makes a complete example showing all steps of processing WiMOD's HCI messages on the low level side. On the high level side the library offers a bunch of simple API commands that control the WIMOD modem firmware. Hence a prototype of a LoRaWAN™ end-node can be created in minutes. This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION OR EVALUATION PURPOSES ONLY and is not considered by IMST GmbH to be finished end - product fit for general consumer use.

Please ask always for a quote at sales@imst.de for volumes not offered in the webshop! This article contains 100 units of the 'iM880B-L LR_Base' Radio Module on Tape & Reel for automated pick and place tools. The 'iM880B-L LR_Base' is a compact and low-cost radio module that operates in the unlicensed 868 MHz band and combines a powerful Cortex-M3 controller with the LoRa® transceiver SX1272 of Semtech Corporation. A sensitivity of up to -137 dBm and a maximum output power of +19 dBm result in a link budget of more than 156 dB. Even when reducing the output power to +14 dBm ranges beyond 12 km are possible in free space. The  'iM880B-L LR_Base' is pre-certified according the European RED guideline and can be soldered like an SMD component. The 'iM880B-L LR_Base' includes an embedded protocol stack which allows the setting of six orthogonal spreading sequences, four error correction schemes and three signal bandwidths and thus offers the user a high degree of flexibility. Furthermore it provides various options for configuration and communication via the serial interface. In addition, it is possible to integrate customer specific applications on request. The Radio Module is pre-programmed with LR_Base, a propritary protocol. More information ... LoRaWAN™ is a trademark of LoRa Alliance™, LoRa® is a registered trademark of Semtech, Inc. Microsoft Windows®, Microsoft CE® are registered trademarks of Microsoft, Inc.

EMPIRE XPU is a leading 3D EM field solver for RF and microwave antennas, components, and systems. Due to its unique on-the-fly compilation it has proven to be the fastest simulation engine which allows the modeling of highly complex structures within minutes. The Gold Package includes: Smart Editor - Easily create models in 2D or 3D views Simulation Control and sophisticated postprocessing FDTD Solver - Fastest and most efficient simulation engine 2D Layout and 3D STL and ACIS data exchange Far Field Module (Antenna Radiation Pattern, RCS Calculations) Waveguide Modes (TE + TM higher order modes) SAR Calculation (Specific Absorption Rate Averages) Optimizer (Parametric geometry and properties) Circuit Simulator (Lumped Elements, Couplers, Touchstone Files) Update & Support for the renting period Shipped items: EMPIRE XPU software (download), node locked license Rental Period: 6 months More information

The Lite Gateway (LGW) is a demonstration and evaluation platform consisting of the pre-certified concentrator iC880A-SPI, a Raspberry Pi, a pre-configured SD-card and a housing. The product requires an SMA-Antenna (868 MHz) and a Power Supply Unit (5 V, 2.5 A), see accessories. The Power Supply requires a 5.5mm/2mm barrel to connect the Lite Gateway Unit. This device enables LoRa-customers to demonstrate and evaluate LoRaWAN™ features, and can be easily connect to existing servers (e.g. iot.semtech.com , Loriot). The source code of firmware is provided by the open source github project lora-net) This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION OR EVALUATION PURPOSES ONLY and is not considered by IMST GmbH to be finished end - product fit for general consumer use. More Information LoRaWAN™ is a trademark of the LoRa Alliance®, LoRa®, LoRa Alliance® are registered trademarks of Semtech.

Power Supply Unit for Lite Gateway (Input AC 220/235V, Output DC 5V/2.4A, 12W). The Power Supply comes with a 5.5mm/2mm barrel to connect the Lite Gateway Unit.

The Sentire™ Radar Developer Kit - 'DK-sR-1030e' - is a plug & play radar solution as a demonstration and development platform. It features a single chip-IC from Infineon for the radar functionality. The 24 GHz Radar has one transmit and two receive antennas/channels. Thus, it is well suited for distance, angle and speed measurements in FMCW or Doppler mode. The DK comes with a single radar module with connectorized antenna ports, thus has no antennas. The Developer Kit 'DK-sR-1030e' comes along with a configuration and visualization tool - SenTool™ for Windows™ PCs. The GUI includes basic radar configuration settings, data plotting as well as target recognition and tracking capabilities. Furthermore, this product features Power-over-Ethernet (PoE) functionality for powering the devices and for data transmission. Important Notice: The radar module “DK-sR-1030e” is a demonstrator and has neither CE certification nor FCC. Customer has to take full liability for the operation on its own. Please adhere to your national frequency regulations for the 24 GHz ISM band (Industrial, Scientific and Medical radio spectrum). More Detailed Information on Radar Solutions at IMST.

The 'iM282A-L LR_Base Plus' is a compact and low-cost radio module that operates in the unlicensed 2.45 GHz band and combines a powerful Cortex-M3 controller with the new ultra long range transceiver SX1280 of Semtech Corporation. It has been specifically designed for battery driven applications and is able to achieve without any additional amplifiers a LoS range of more than 10 km. The WiMOD LR Base Plus firmware provides LoRa®-modem functionalities which allows to implement proprietary and cost sensitive radio networks with typical topologies like peer-to-peer and star configurations. The embedded radio protocol stack offers unacknowledged and acknowledged radio packet exchange with optional encryption and automatic power saving for battery driven applications. Besides the modem services the firmware includes some example features which are typical for the application area of this LoRa® radio modules: a tiny sensor application which demonstrates a periodic sensor data transmission and a remote control with digital input/ouput via radio link. Finally the supporting software provides two analizing tools, which are helpful in developing radio based applications:  Radio Link Test application which allows to analyze the radio link quality for different LoRa® radio settings by means of the typical metrics Packet RSSI, Packet SNR and Packet Error Rate Radio Packet Sniffer which forwards received radio packets These embedded development tools and all the other features can be used in combination with WiMOD LR Studio which offers an easy to use configuration, logging capabilities and data visualisation. LoRa® is a registered trademark of Semtech, Inc.

The Starter Kit is a plug & play solution to explore the features and capabilities of the Long Range Radio (LoRa®) module 'iM282A-L LR_Base Plus'. The kit contains two demo boards and two radio modules soldered on specific adapter boards. The modules are pre-programmed with the LR_Base Plus firmware, software for the protocol option 'GlobalLink24' is available for download. The demo board is the basic platform of the Starter Kit and provides several functional units. These units include power supply, USB interface, and several input and output elements, such as push buttons, DIP switches, potentiometer, and LEDs. In addition all pads of the attached radio module can be accessed via pin connectors. Connection between the radio module and the demo board is established via a module-specific adapter board. The radio module is soldered on the adapter board which is attached to the demo board through pin connectors. The adapter board also has a SMA jack connected to the RF output of the radio module, which can be used to connect an external antenna (or RF measuring and test equipment). The LoRa® technology can be easily evaluated with our Starter Kit SK-iM282A. It comprises a wide range of configuration and logging capabilities as well as several sample applications like Range Test, Data Link Service, etc.  Content  WiMOD LR Studio 2x demo board 2x module specific adapter board 2x radio module soldered on the adapter board 2x external antenna 2x USB cable Application & Software   Studio GUI for Windows Module Configuration Radio Link Test Data Link Services Packet Sniffer Real Time Clock Sensor App Comprehensive Logging Capabilities LoRa® is a registered trademark of Semtech, Inc.
