SK-iM880B - Starter Kit for iM880B
The Starter Kit SK-iM880B is a plug & play solution to explore the features and capabilities of the LoRa radio module iM880B-L. The Starter Kit contains two demo boards and two radio modules, soldered on specific adapter boards. The modules are pre-programmed with the LoRa radio firmware (LR_Base). The LoRa technology can be easily evaluated with our Starter Kit SK-iM880B. It comprises a wide range of configuration and logging capabilities as well as several sample applications like Range Test, Data Link Service, etc. The SK-iM880B is also a supported platform within the LoRa Open Source Project LoRa-net on github.com.

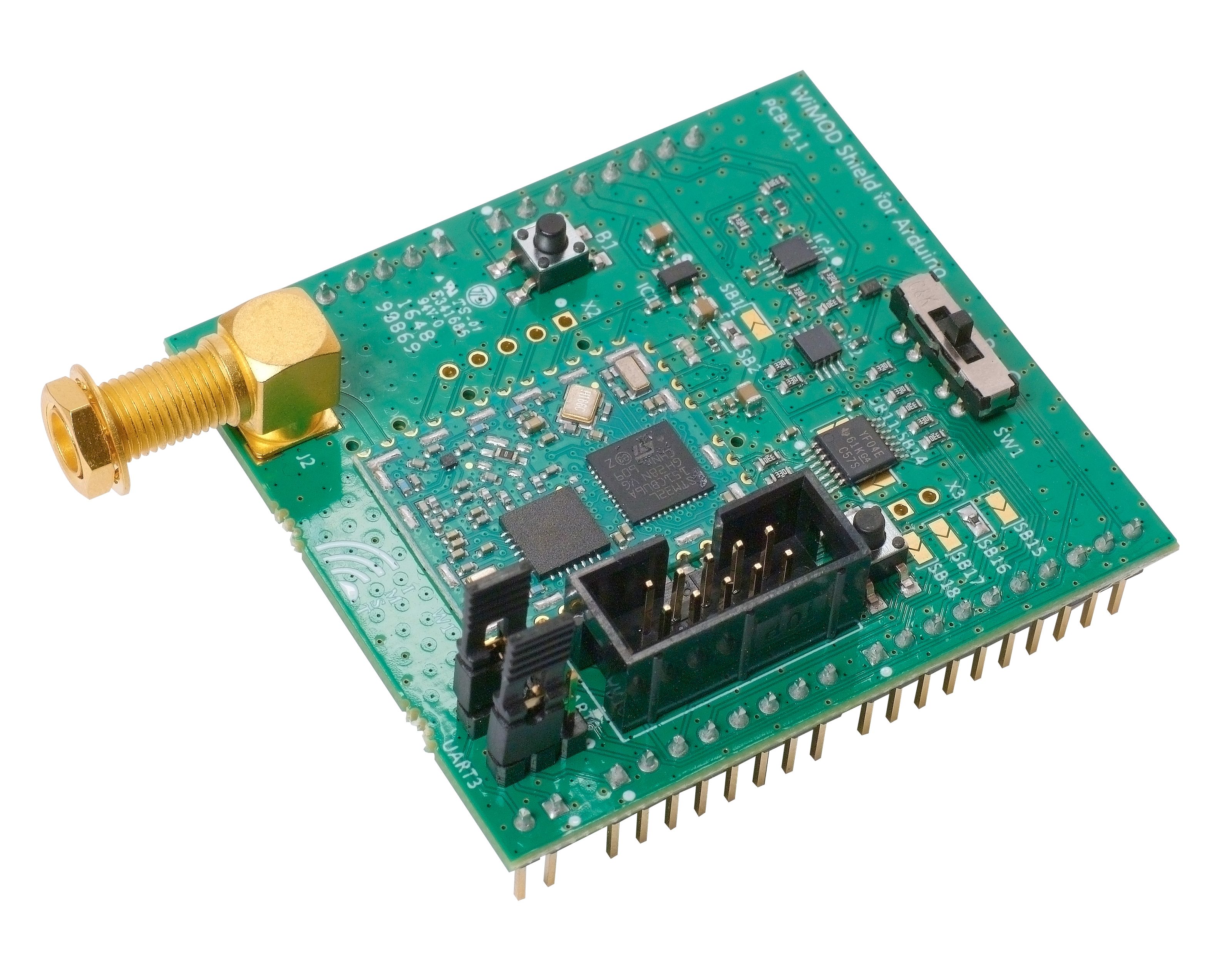

WSA01-iM880B - WiMOD Shield for Arduino
WiMOD Shield for Arduino™ - A Long Range Radio Extension Board for Ardunio™ The WiMOD Shield is a expansion board that enables users of Arduino™ / Arduino-compatible boards to use WiMOD radio modules based on LoRa™ technology. Arduino™ boards are microcontoller-based boards that allow the user to do simple designs and prototypes or experiment with microcontroller circuits in general. The boards offer an interface for extending the basic functionality like sensors and actors by just stacking the extension boards to the base board. The WiMOD Shield is a small and low cost extension board that can be attached to the top offering an radio interface based on the LoRa™ technology. The shield is an interface card for connecting a WiMOD radio module to an Arduino™ board. The Shield includes everything that is needed for connecting a WiMOD module to an Arduino™ board. The power supply is sourced by the Arduino™ board and the I/O logic levels are adjusted by integrated level shifters. The SMA connector offers the possibility to add virtually any suitable antenna to get a good performance. The Shield offers two possible UART connections, so it can be used with Arduino™ UNO-like board and with Arduino™ DUE-like boards. For the latter one an additional UART can be used exclusively for the radio module communication. Besides the hardware board a example software library providing an easy access to the WiMOD HCI interface is available. The library is compatible to the Arduino™ IDE an can be installed by a simple import of the given files. This makes a complete example showing all steps of processing WiMOD's HCI messages on the low level side. On the high level side the library offers a bunch of simple API commands that control the WIMOD modem firmware. Hence a prototype of a LoRaWAN™ end-node can be created in minutes. This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION OR EVALUATION PURPOSES ONLY and is not considered by IMST GmbH to be finished end - product fit for general consumer use.

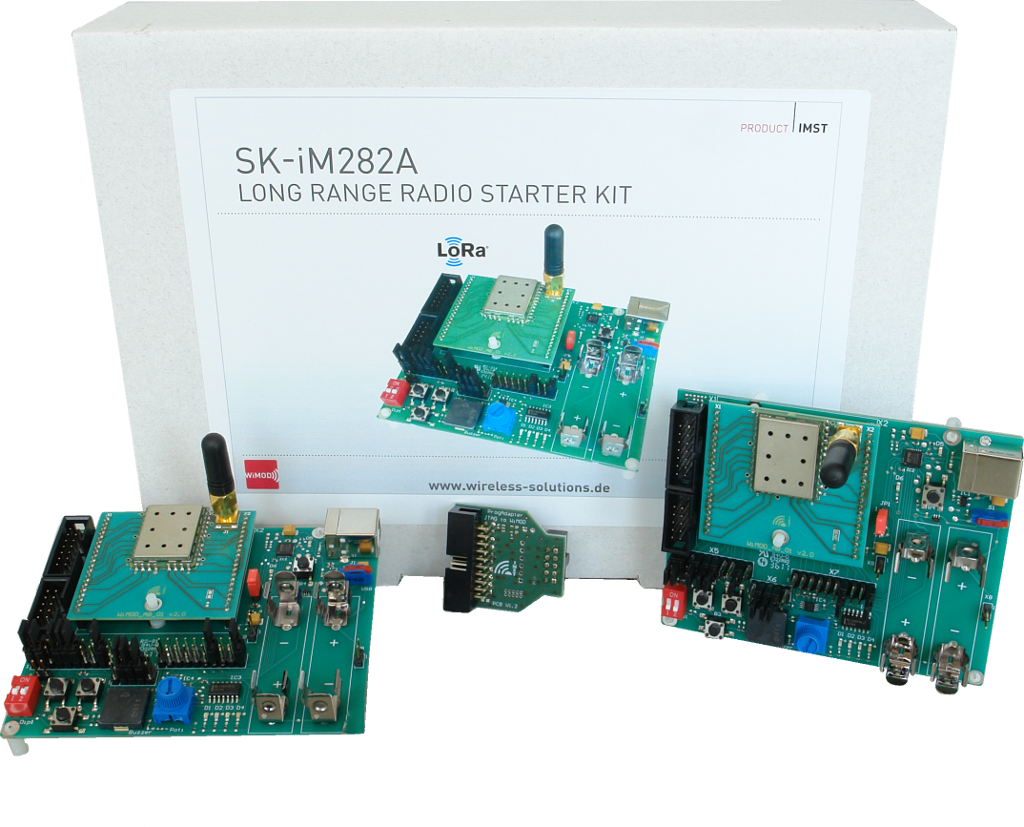

SK-iM282A - Starter Kit for iM282A-L
The Starter Kit is a plug & play solution to explore the features and capabilities of the Long Range Radio (LoRa®) module 'iM282A-L LR_Base Plus'. The kit contains two demo boards and two radio modules soldered on specific adapter boards. The modules are pre-programmed with the LR_Base Plus firmware, software for the protocol option 'GlobalLink24' is available for download. The demo board is the basic platform of the Starter Kit and provides several functional units. These units include power supply, USB interface, and several input and output elements, such as push buttons, DIP switches, potentiometer, and LEDs. In addition all pads of the attached radio module can be accessed via pin connectors. Connection between the radio module and the demo board is established via a module-specific adapter board. The radio module is soldered on the adapter board which is attached to the demo board through pin connectors. The adapter board also has a SMA jack connected to the RF output of the radio module, which can be used to connect an external antenna (or RF measuring and test equipment). The LoRa® technology can be easily evaluated with our Starter Kit SK-iM282A. It comprises a wide range of configuration and logging capabilities as well as several sample applications like Range Test, Data Link Service, etc. Content WiMOD LR Studio 2x demo board 2x module specific adapter board 2x radio module soldered on the adapter board 2x external antenna 2x USB cable Application & Software Studio GUI for Windows Module Configuration Radio Link Test Data Link Services Packet Sniffer Real Time Clock Sensor App Comprehensive Logging Capabilities LoRa® is a registered trademark of Semtech, Inc.

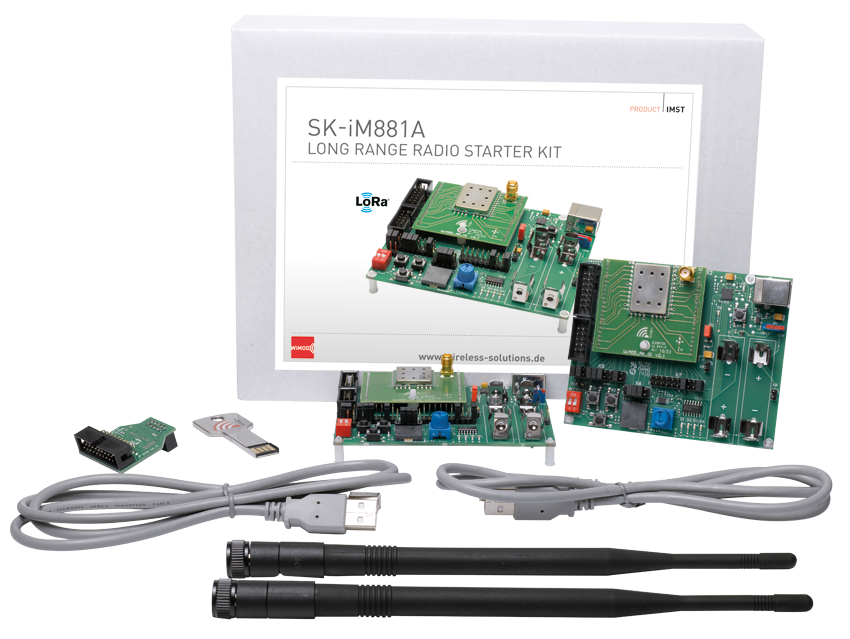

SK-iM881A-XL - Starter Kit for iM881A-XL
The Starter Kit 'SK-iM881A-XL' is a plug & play solution to explore the features and capabilities of the LoRa radio module iM881A-XL. The Starter Kit contains two demo boards and two radio modules, soldered on specific adapter boards. The modules are pre-programmed with the LoRa radio firmware (LR_Base). The LoRa technology can be easily evaluated with our Starter Kit 'SK-iM881A-XL'. It comprises a wide range of configuration and logging capabilities as well as several sample applications like Range Test, Data Link Service, etc. The 'SK-iM881A-XL' is also a supported platform within the LoRa Open Source Project LoRa-net on github.com.
