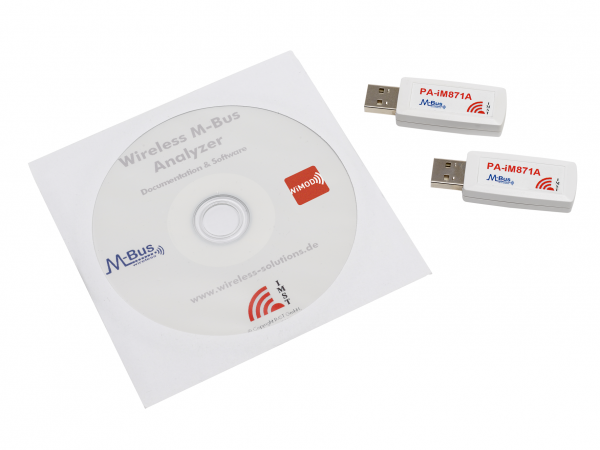

PA-iM871A - Wireless M-Bus Analyzer

PA-iM871A - Wireless M-Bus Analyzer
€399.00 *
Content: 1 Piece(s)

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 404573
The 'Wireless M-Bus Packet Analyzer PA-iM871A' (Version 1.8) supports the monitoring and... more
Product information "PA-iM871A - Wireless M-Bus Analyzer"

The 'Wireless M-Bus Packet Analyzer PA-iM871A' (Version 1.8) supports the monitoring and analyzing of Wireless M-Bus traffic according to EN 13757-4 and has an extended range of feature.

This tool provides an easy to use graphical user interface for rapid troubleshooting and maintenance of your Wireless M-Bus network. Long time packet capturing and packet visualization for many Wireless M-Bus configurations can be managed with only a few mouse clicks in combination with the PA-iM871A, a Wireless M-Bus USB adapter.

The Analyzer supports single- and dual-radio modes for monitoring of up- and downlink channels with different physical settings in parallel. Decryption support enables to inspect also AES-128 bit encrypted packets. Flexible packet filtering and data visualization allows an easy and efficient way for troubleshooting and validation of complex wireless network configurations. With respect to the ETSI regulations a traffic monitor for duty cycle evaluation completes the list of supported features.

Packet Capturing:

connect the PA-iM871A to your PC and start your monitor session

Single Radio Mode:

used for S1, S1m, S2, T1

Dual Radio Mode:

suitable for T2 and R2

Packet Visualization:

packet content is visualized in multiple ways

Packet Filter:

focus on specific message types or network nodes for fast and easy analyzing

Message Parser:

deep packet analysis including M-Bus application layer (EN 13757-3)

Traffic Monitor:

evaluate the Duty Cycle of single Wireless M-Bus nodes

AES Decryption:

decryption support for multiple AES-128 bit Keys

Operating Systems:

MS-Windows™ 7, 8, (XP), Ubuntu 12.04 LTS-64 Bit

More Detailed Information
